常用貼片三極管封裝資料和尺寸圖

常用貼片三極管封裝資料和尺寸圖
1B SOT23 IRLML2803 F n-ch mosfet 30V 0.9A
1B SOT23 MMBT2222 NPN
1B SOT23 MMBT2222 N 2N2222
1B SOT23 PMBT2222 NPN
1B SOT23 SMBT2222 NPN
1B SOT23 YTS2222 NPN
1B SOT323 BC846BW NPN
1B SOT416 BC846BT N BC546B
1B SOT89 PXT2222 NPN
-1B SOT323 PMST2222 N 2N2222
1B- SOT323 >BC846BW N BC546B
1Bp SOT23 BC846B N BC546B
1Bs SC74 BC817UPN N
1Bt SOT23 BC846B N BC546B

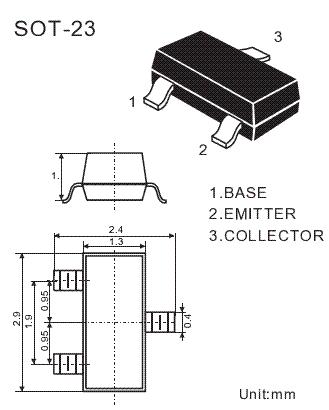

下圖是貼片三極管封裝SOT-23尺寸資料(貼片三極管s9014LT1)

1Bt SOT323 BC846BW N BC546B
1C SOT23 FMMT-A20 NPN
1C SOT23 FMMT-A20 N MPSA20
1C SOT23 IRLML6302 F p-ch mosfet 20V 0.6A
1C SOT23 MMBTA20 NPN
1C SOT23 MMBTA20L N MPS3904
1C SOT23 SMBTA20 NPN
1Cp SOT23 BAP50-05 B dual cc GP RF pin diode
1Cs SOT363 BC847S BC457
1D SOT23 BC846 NPN
1D SOT23 IRLML5103 F p-ch mosfet 30V 0.6A
1D SOT23 MMBTA42 NPN
1D SOT23 MMBTA42 N MPSA42 300V npn
1D SOT23 SMBTA42 NPN
1D SOT323 BC846W NPN
1D SOT89 SXTA42 NPN
1D- SOT323 BC846W N BC456
1DN 2SC4083 N npn 11V 3.2GHz TV tuners
1Dp SOT23 BC846 N BC456
1DR SC59 MSD1328-RT1 NPN
1A SOT323 BC846AW NPN
1A SOT416 BC846AT N BC546A
1A SOT89 PXT3904 NPN
1A SOT89 SXT3904 NPN
-1A SOT323 PMST3904 N 2N3904
1A- SOT323 BC846AW N BC546A
1AM SOT23 MMBT3904L N 2N3904
1Ap SOT23 BC846A N BC546A
1At SOT23 BC846A N BC546A
1At SOT323 BC846AW N BC546A
1B SOT23 BC846B NPN
1B SOT23 BC846B N BC546B
1B SOT23 FMMT2222 NPN
1B SOT23 FMMT2222 N 2N2222
1DR SOT346 MSD1328R N npn gp 25V 500mA
1Ds SC74 BC846U N BC456
1Ds SOT363 BC846U BC456
1Dt SOT23 BC846 N BC456
1Dt SOT323 BC846W N BC456
1E FMMT-A43 N MPSA43
1E SOT23 BC847A NPN
1E SOT23 BC847A N BC547A
1E SOT23 FMMT-A43 NPN
1E SOT23 MMBTA43 NPN
1E SOT23 MMBTA43 N MPSA43 200V npn
1E SOT23 SMBTA43 NPN
1F SOT23 FMMT5550 NPN
1F SOT23 MMBT5550 NPN
1F SOT23 MMBT5550 N 2N5550 140V npn
1F SOT23 PMBT5550 NPN
1F SOT323 BC847BW NPN
1F SOT416 BC847BT N BC547B
1F- SOT323 BC847BW N BC547B
1Fp SOT23 BC847B N BC547B
1FR SOT23R BC847BR R BC547B
1Fs SC75 BC847BT N BC547B
1Fs SOT23 BC847B N BC547B
1Fs SOT323 BC847BW N BC547B
1Ft SOT23 BC847B N BC547B
1Ft SOT323 BC847BW N BC547B
1G FMMT-A06 N MPSA06
1G SOT23 BC847C NPN
1G SOT23 BC847C N BC547C
1G SOT23 FMMT-A06 NPN
1G SOT23 MMBTA06 NPN
1G SOT23 MMBTA06 N MPSA06
1G SOT23 SMBTA06 NPN
1G SOT323 BC847CW NPN
1G SOT416 BC847CT N BC547C
1G- SOT323 BC847CW N BC547C
1GM SOT23 MMBTA06 N MPSA06
1Gp SOT23 BC847C N BC547C
1GR SOT23R BC847CR R BC547C
1Gs SOT23 BC847C N BC547C
1Gs SOT323 BC847CW N BC547C
1GT SOA06 N MPSA06
1GT SOT23 SOA06 NPN
1Gt SOT323 BC847CW N BC547C
1H FMMT-A05 N MPSA05
1H SOT23 BC847 NPN
1H SOT23 FMMT-A05 NPN
1H SOT23 MMBTA05 NPN
1H SOT23 MMBTA05 N MPSA05
1H SOT23 SMBTA05 NPN
1H SOT323 BC847W NPN
1H- SOT323 BC847W N BC547
1Hp SOT23 BC847 N BC547
1Ht SOT23 BC847 N BC547
1HT SOT23 SOA05 NPN
1HT SOT23 SOA05 N MPSA05
1Ht SOT323 BC847W N BC547
1J FMMT2369 N 2N2369
1J SOT23 BC848A N BC548A
1J SOT23 MMBT2369 N MPS2369
1JA SOT23 MMBT2369A N MPS2369A
1JR SOT23R BC848AR R BC548A
1Js SOT143 BCV61A VQ npn current mirror hFe 180
1Js SOT23 BC848A N BC548A
1Js SOT323 BC848AW N BC548A
1K FMMT4400 N 2N4400
1K SOT143 BCV61B NPN
1K SOT23 BC848B NPN
1K SOT23 BC848B N BC548B
1K SOT23 FMMT4400 NPN
1K SOT23 MMBT6428 NPN
1K SOT23 MMBT6428 N MPSA18 50V
1K SOT23 PMBT6428 NPN
1K SOT23 SMBT6428 NPN
1K SOT323 BC848BW NPN
1KM SOT23 MMBT6428L N MPSA18 50V
1Kp SOT23 BC848B N BC548B
1KR SOT23R BC848BR R BC548B
1Ks SOT143B BCV61B VQ npn current mirror hFe 290
1Ks SOT23 BC848B N BC548B
1Ks SOT323 BC848BW N BC548B
1L FMMT4401 N 2N4401
1L MMBT6429 N MPSA18 45V
1L SOT143 BCV61C NPN
1L SOT143B BCV61C VQ npn current mirror hFe 520
1L SOT23 BC848C NPN
1L SOT23 BC848C N BC548C
1L SOT23 FMMT4401 NPN
1L SOT23 FMMT5400 PNP
1L SOT23 MMBT6429 NPN
1L SOT23 PMBT6429 NPN
1L SOT23 SMBT6429 NPN
1L SOT323 BC848CW NPN
1Lp SOT143B BCV61C VQ npn current mirror hFe 520
1Lp SOT23 BC848C N BC548C
1LR SOT23R BC848CR R BC548C
1Ls SOT23 BC848C N BC548C
1Ls SOT323 BC848CW N BC548C
1M SOT143 BCV61 NPN
1M SOT23 BC848 NPN
1M SOT23 FMMT-A13 NPN
1M SOT23 FMMT-A13 N MPSA13
1M SOT23 MMBTA13 NPN
1M SOT23 MMBTA13 N MPSA13 darlington
1M SOT23 PMBTA13 NPN
1M SOT23 SMBTA13 NPN
1M SOT323 BC848W NPN
1Mp SOT143B BCV61 VQ npn current mirror
1Mp SOT23 BC848 N BC548
1N SOT23 FMMT-A14 NPN
1N SOT23 FMMT-A14 N MPSA14
1N SOT23 MMBTA14 NPN
1N SOT23 MMBTA14 N MPSA14 darlington
1N SOT23 PMBTA14 NPN
1N SOT23 SMBTA14 NPN
1N SOT89 PXTA14 NPN
1N10 SOT223 MMFT1N10ET1 MOSFET
1P BC847PN DI pnp/npn separate pair gpAF
1P FMMT2222A N 2N2222A
1P SOT23 FMMT2222A NPN
1P SOT23 MMBT2222A NPN
1P SOT23 MMBT2222A N 2N2222A
1P SOT23 PMBT2222A NPN
1P SOT23 SMBT2222A NPN
1P SOT23 YTS2222A NPN
1P SOT89 PKT2222A NPN
1Q SOT23 FMMT5088 NPN
1Q SOT23 MMBT5088 NPN
1Q SOT23 MMBT5088 N MPSA18 Vce 30V
1Q SOT23 PMBT5088 NPN
1E SOT323 BC847AW NPN
1E SOT416 BC847AT N BC547A
1E SOT89 SXTA43 NPN
1E- SOT323 BC847A N BC547A
1EN 2SC4084 N npn 20V 2.0GHz TV tuners
1Ep SOT23 BC847A N BC547A
1ER SOT23R BC847AR R BC547A
1Es SOT23 BC847A N BC457
1Es SOT323 BC847AW N BC457
1Et SOT23 BC847A N BC547A
1Et SOT323 BC847A N BC547A
1F SOT23 BC847B NPN
1F SOT23 BC847B N BC547B容－源－電－子－網－為你提供技術支持
